AZM-LCD07-06F
PDF :
(589KB)
Pin Compatible
Applications
- LCD and camera data lines
- Hand Held Portable Applications: EMI filtering and ESD protection for I/O ports and keypads
Specification
VRWM (V)
5
Initial Drop S21 (dB)
-6
-3dB Cut-off Freq.
120MHz
CIN (pF)
42
VBR (V)
6
Channel
6
ESD Vclamp@8kV (V)
9.5
ESD Air/Contact (kV)
17/17

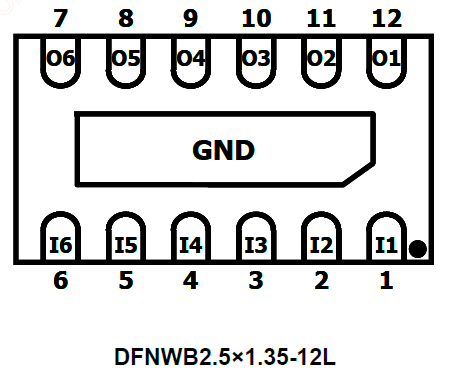

Package
DFN25135P12E
Size (L,mm)
2.5
Size (W,mm)
1.35
Size (H,mm)
0.5
