AZ6318-01M
Datasheet :
(160.4KB)
Pin Compatible
Applications
- Power supply protection
- OLED displays
- Small panel modules
- Handheld portable applications
- Low speed data or control line protection
- Peripherals
- Consumer electronics
Specification
Package

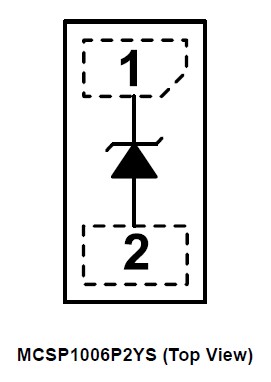

MCSP1006P2YS
Channel
1
VRWM (V)
1.8
CIN (pF)
200
ESD Vclamp
@8kV (V)
3.1
ESD Air/Contact
(kV)
30/30
Surge Ipp
8/20μS (A)
50
VBR (V)
2.2
Directional
Uni
Surge Vclamp@5A (V)
2.7
EFT IO (A)
80
Size (L,mm)
1.0
Size (W,mm)
0.6
Size (H,mm)
0.25
