Pin Compatible
Applications
- Keypads applications
- LCD for mobile phones
- Hand held portable applications
- Display applications
- Notebooks, Desktops, Servers
- Consumer applications
Specification
VRWM (V)
3.3
Initial Drop S21 (dB)
-5.5
-3dB Cut-off Freq.
150MHz
CIN (pF)
27.5
VBR (V)
3.3
Channel
20
ESD Vclamp@8kV (V)
8
ESD Air/Contact (kV)
17/17
Package

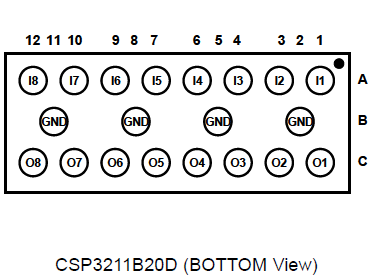

CSP3211B20D
Size (L,mm)
3.2
Size (W,mm)
1.09
Size (H,mm)
0.6
