AZ6121-01F
PDF :
(183.3KB)
Pin Compatible
Applications
- Mobile Phones
- OLED displays
- Data and control lines protection
- Power line protection
- Hand held portable applications
- Computer interfaces protection
Specification
Package

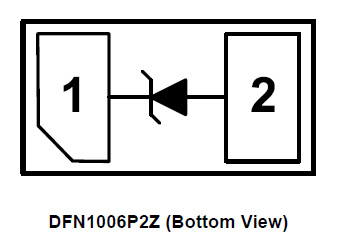

DFN1006P2Z
Channel
1
VRWM (V)
2.1
CIN (pF)
36
ESD Vclamp
@8kV (V)
4.4
ESD Air/Contact
(kV)
30/30
Surge Ipp
8/20μS (A)
13
VBR (V)
2.2
Directional
Uni
Surge Vclamp@5A (V)
3.3
EFT IO (A)
80
Size (L,mm)
1.00
Size (W,mm)
0.60
Size (H,mm)
0.40
