AZC399-04C
PDF :
(287.7KB)
Pin Compatible
Applications
- Video Graphics Cards
- USB2.0 Power and Data lines protection
- Notebook and PC Computers
- Monitors and Flat Panel Displays
- IEEE 1394 Firewire Ports
- SIM ports
- LVDS Interface
Specification
Package

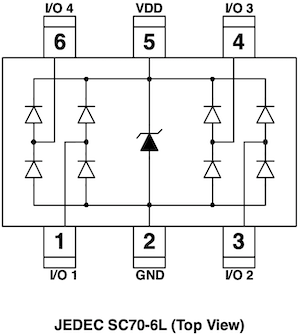

SC70-6L
Channel
4
VRWM (V)
5
CIN (pF)
1.4
ESD Vclamp
@8kV (V)
11
ESD Air/Contact
(kV)
26/16
Surge Ipp
8/20μS (A)
8.5
VBR (V)
6
Directional
Uni
Surge Vclamp@5A (V)
7.5
EFT IO (A)
60
Size (L,mm)
2.05
Size (W,mm)
1.25
Size (H,mm)
1.00
