AZ5123-02S
PDF :
(181.7KB)
Pin Compatible
Applications
- Computer Interfaces Protection
- Microprocessors Protection
- Serial and Parallel Ports Protection
- Control Signal Lines Protection
- Power lines on PCB Protection
- Latchup Protection
Specification
Package

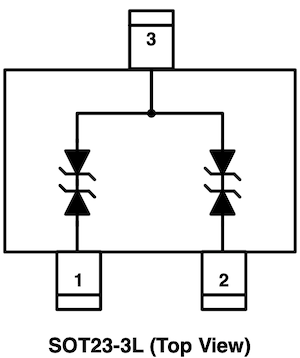

SOT23-3L
Channel
2
VRWM (V)
3.3
CIN (pF)
11
ESD Vclamp
@8kV (V)
8.5
ESD Air/Contact
(kV)
15/15
Surge Ipp
8/20μS (A)
4
VBR (V)
4
Directional
Bi
Surge Vclamp@5A (V)
N/A
EFT IO (A)
40
Size (L,mm)
2.90
Size (W,mm)
1.30
Size (H,mm)
1.02
