AZ2113-04F
PDF :
(987.2KB)
Pin Compatible
Applications
- Cellular Handsets and Accessories
- Small Panel Modules
- PDA's
- Portable Devices
- Digital Cameras
- Touch Panels
Specification
Package

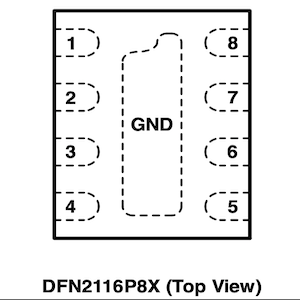

DFN2116P8X
Channel
4
VRWM (V)
3.3
CIN (pF)
36
ESD Vclamp
@8kV (V)
6.5
ESD Air/Contact
(kV)
20/20
Surge Ipp
8/20μS (A)
5
VBR (V)
4.5
Directional
Uni
Surge Vclamp@5A (V)
6
EFT IO (A)
60
Size (L,mm)
2.10
Size (W,mm)
1.60
Size (H,mm)
0.45
