AZ2013-05R
PDF :
(159.3KB)
Pin Compatible
Applications
- Audio Interfaces Protection
- Computer Interfaces Protection
- Microprocessors Protection
- Serial and Parallel Ports Protection
- Control Signal Lines Protection
- Power lines on PCB Protection
- Latchup Protection
Specification

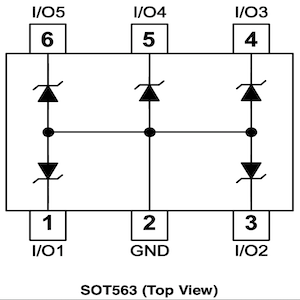

Package
SOT-563
Channel
5
VRWM (V)
3.3
CIN (pF)
26
ESD Vclamp
@8kV (V)
6
ESD Air/Contact
(kV)
18/18
Surge Ipp
8/20μS (A)
N/A
VBR (V)
4.5
Directional
Uni
Surge Vclamp@5A (V)
N/A
EFT IO (A)
60
Size (L,mm)
1.60
Size (W,mm)
1.20
Size (H,mm)
0.56
