AZC015-04F
Datasheet :
(215.3KB)
Pin Compatible
Applications
- I/O ports and Buses of Mobile Devices
- USB2.0 Power and Data lines protection
- Notebook and PC Computers
- Monitors and Flat Panel Displays
- IEEE 1394 Firewire Ports
- Video Graphics Cards
- SIM ports
Specification
Package

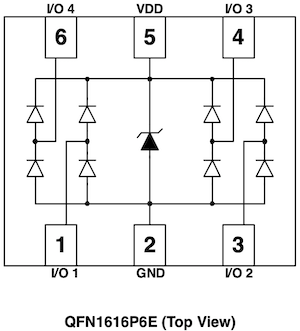

QFN1616P6E
Channel
4
VRWM (V)
5
CIN (pF)
1.3
ESD Vclamp
@8kV (V)
12.5
ESD Air/Contact
(kV)
21/14
Surge Ipp
8/20μS (A)
6.5
VBR (V)
6
Directional
Uni
Surge Vclamp@5A (V)
8.1
EFT IO (A)
20
Size (L,mm)
1.60
Size (W,mm)
1.60
Size (H,mm)
0.55
