AZ5425-01F
Datasheet :
(190.8KB)
Pin Compatible
Applications
- USB Type-C (D+/D- with Audio signal)
- High Definition Multi-Media Interface (HDMI) 1.3 & 1.4 and 2.0 version
- DisplayPort interface
- SATA and eSATA interface
- V-By-One
- LVDS interfaces
- IEEE 1394 up to 3.2 Gb/s
- Ethernet port: 10/100/1000 Mb/s
- Desktop and Notebooks PCs
Specification
Package

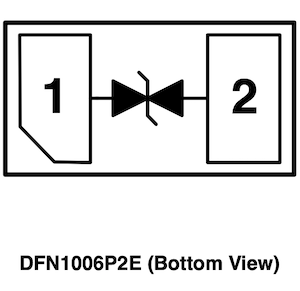

DFN1006P2E
Channel
1
VRWM (V)
5
CIN (pF)
0.8
ESD Vclamp
@8kV (V)
24
ESD Air/Contact
(kV)
15/8
Surge Ipp
8/20μS (A)
N/A
VBR (V)
7
Directional
Bi
Surge Vclamp@5A (V)
N/A
EFT IO (A)
N/A
Size (L,mm)
1.00
Size (W,mm)
0.60
Size (H,mm)
0.50
