AZ9585-01F
Datasheet :
(138.2KB)
Pin Compatible
Applications
- Automotive applications
- Vbat pin for Mobile Device
- Power Line Protection
- Control Signal Lines Protection
- Audio Protection
- Mobile Phones
- Hand Held Portable Applications
- Serial and Parallel Ports Protection
Specification

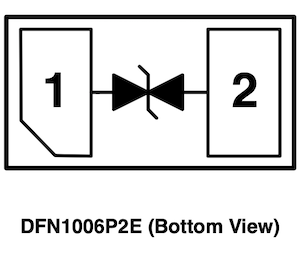

Package
DFN1006P2E
Channel
1
VRWM (V)
5
CIN (pF)
28
ESD Vclamp
@8kV (V)
6.5
ESD Air/Contact
(kV)
25/25
Surge Ipp
8/20μS (A)
15
VBR (V)
6
Surge Vclamp@5A (V)
6
EFT IO (A)
N/A
Size (L,mm)
1.00
Size (W,mm)
0.60
Size (H,mm)
0.50
