AZ9543-01M
Datasheet :
(187.3KB)
Pin Compatible
Applications
- Power supply protection
- OLED
- Small panel modules
- Handheld portable applications
- Low speed data or control line protection
- Peripherals
- Consumer electronics
Specification
Package

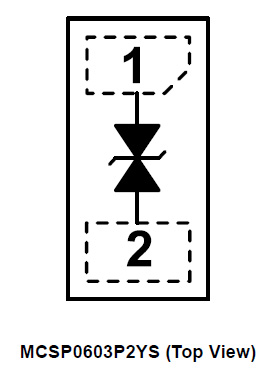

MCSP0603P2YS
Channel
1
VRWM (V)
3.3
CIN (pF)
60
ESD Vclamp
@8kV (V)
4.5
ESD Air/Contact
(kV)
30/30
Surge Ipp
8/20μS (A)
30
VBR (V)
3.8
Directional
Bi
Surge Vclamp@5A (V)
5.5
EFT IO (A)
N/A
Size (L,mm)
0.63
Size (W,mm)
0.33
Size (H,mm)
0.25
