AZ5C23-01B
Datasheet :
(159.2KB)
Pin Compatible
Applications
- Mobile phones
- Hand held portable applications
- Computer interfaces protection
- Microprocessors protection
- Serial and parallel port protection
- Control signal lines protection
- Power lines on PCB protection
- Fingerprint
Specification

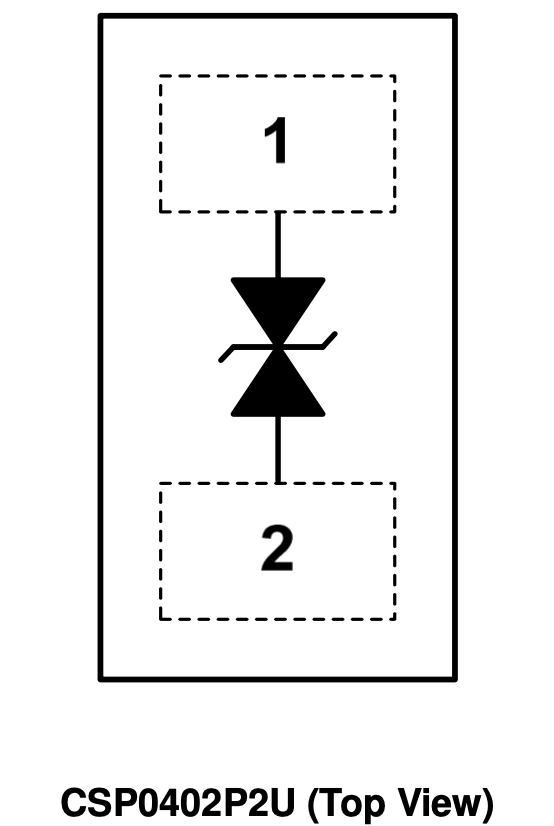

Package
CSP0402P2U
Channel
1
VRWM (V)
3.3
CIN (pF)
7
ESD Vclamp
@8kV (V)
5.8
ESD Air/Contact
(kV)
18/18
Surge Ipp
8/20μS (A)
N/A
VBR (V)
4
Directional
Bi
Surge Vclamp@5A (V)
N/A
EFT IO (A)
50
Size (L,mm)
0.44
Size (W,mm)
0.235
Size (H,mm)
0.17
