AZ4A24-01F
Datasheet :
(268.1KB)
Pin Compatible
Applications
- Mobile Phones
- Hand Held Portable Applications
- Computer Interfaces Protection
- Microprocessors Protection
- Serial and Parallel Ports Protection
- Control Signal Lines Protection
- Power lines on PCB Protection
- Latchup Protection
Specification
Package

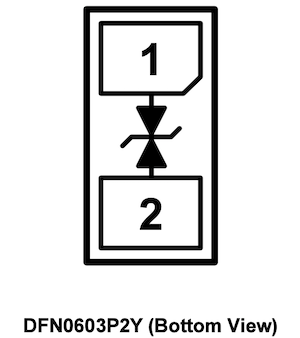

DFN0603P2Y
Channel
1
VRWM (V)
24
CIN (pF)
5.8
ESD Vclamp
@8kV (V)
48
ESD Air/Contact
(kV)
20/18
Surge Ipp
8/20μS (A)
N/A
VBR (V)
26.8
Directional
Bi
Surge Vclamp@5A (V)
N/A
EFT IO (A)
40
Size (L,mm)
0.60
Size (W,mm)
0.30
Size (H,mm)
0.30
