AZ4012-01H
Datasheet :
(989KB)
Pin Compatible
Applications
- Battery Contacts
- Power Manager System
- PDA's
- Portable Devices
- Digital Cameras
- Digital Frames
- Cellular Handsets and Accessories
- Notebooks, desktops, and servers
- Microprocessor-based equipment
- Peripherals
Specification

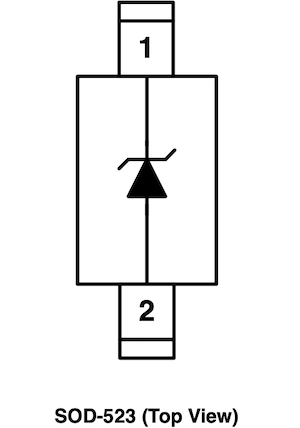

Package
SOD-523
Channel
1
VRWM (V)
12
CIN (pF)
40
ESD Vclamp
@8kV (V)
20
ESD Air/Contact
(kV)
26/20
Surge Ipp
8/20μS (A)
N/A
VBR (V)
13.5
Directional
Uni
Surge Vclamp@5A (V)
N/A
EFT IO (A)
60
Size (L,mm)
1.20
Size (W,mm)
0.80
Size (H,mm)
0.64
