AZ1515-04S
Datasheet :
(218.1KB)
Pin Compatible
Applications
- Video graphics cards
- LAN application
- USB2.0 power and data lines protection
- Notebook and PC computers
- Monitors and flat panel displays
Specification

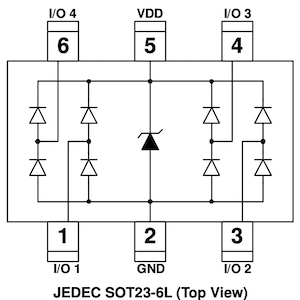

Package
SOT23-6L
Channel
4
VRWM (V)
5
CIN (pF)
1.8
ESD Vclamp
@8kV (V)
9
ESD Air/Contact
(kV)
30/30
Surge Ipp
8/20μS (A)
30
VBR (V)
6
Directional
Uni
Surge Vclamp@5A (V)
7.3
EFT IO (A)
80
Size (L,mm)
2.92
Size (W,mm)
1.60
Size (H,mm)
1.25
