AZ5H33-01F
PDF :
(127.8KB)
Pin Compatible
Applications
- USB 2.0
- USB Type-C D+/D- pins
- Handheld portable applications
- Data and I/O lines protection
- Analog input lines protection
- Video lines protection
Specification
Package

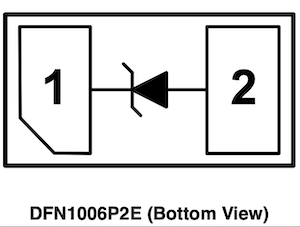

DFN1006P2E
Channel
1
VRWM (V)
3.3
CIN (pF)
0.85
ESD Vclamp
@8kV (V)
15
ESD Air/Contact
(kV)
20/20
Surge Ipp
8/20μS (A)
13
VBR (V)
16
Directional
Uni
Surge Vclamp@5A (V)
13.5
EFT IO (A)
80
Size (L,mm)
1.00
Size (W,mm)
0.60
Size (H,mm)
0.50
