AZ5A85-01B
PDF :
(176.1KB)
Pin Compatible
Applications
- Mobile phones
- Handheld portable applications
- Computer interfaces protection
- Microprocessors protection
- Serial and parallel ports protection
- Control signal lines protection
- Power lines on PCB protection
- Latch-up protection
Specification
Package

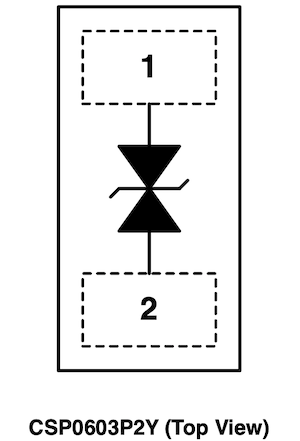

CSP0603P2Y
Channel
1
VRWM (V)
5
CIN (pF)
31
ESD Vclamp
@8kV (V)
6
ESD Air/Contact
(kV)
25/25
Surge Ipp
8/20μS (A)
16
VBR (V)
6
Directional
Bi
Surge Vclamp@5A (V)
6
EFT IO (A)
80
Size (L,mm)
0.60
Size (W,mm)
0.30
Size (H,mm)
0.276
