AZ3133-08F
PDF :
(547.7KB)
Pin Compatible
Applications
- WAN/LAN Device
- 10/100/1000 Ethernet
- Switching Systems
- Computers
- Instruments
Specification
Package

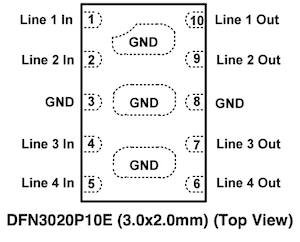

DFN3020P10E
Channel
4
VRWM (V)
3.3
CIN (pF)
3.6
ESD Vclamp
@8kV (V)
10.5
ESD Air/Contact
(kV)
30/30
Surge Ipp
8/20μS (A)
45
VBR (V)
3.9
Directional
Uni
Surge Vclamp@5A (V)
9
EFT IO (A)
80
Size (L,mm)
3.00
Size (W,mm)
2.00
Size (H,mm)
0.55
