AZ3028-04P
PDF :
(172.6KB)
Pin Compatible
Applications
- WAN/LAN Device
- 10/100/1000 Ethernet
- Switching Systems
- Computers
- Instruments
- Differential Inputs
Specification

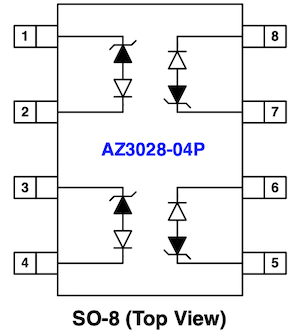

Package
SO-8
Channel
4
VRWM (V)
2.8
CIN (pF)
5.5
ESD Vclamp
@8kV (V)
N/A
ESD Air/Contact
(kV)
30/30
Surge Ipp
8/20μS (A)
30
VBR (V)
3
Directional
Bi
Surge Vclamp@5A (V)
10
EFT IO (A)
60
Size (L,mm)
4.90
Size (W,mm)
3.90
Size (H,mm)
1.55
