AZC615-04S
PDF :
(314KB)
Pin Compatible
Applications
- LAN applications
- Notebook and PC Computers
- Handheld electronics
- Monitors and Flat Panel Displays
- USB 2.0 data lines protection
- Video lines protection
Specification
Package

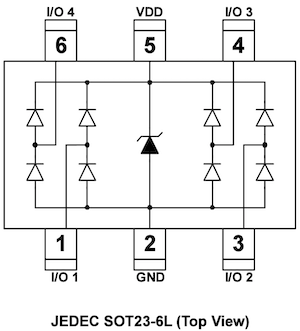

SOT23-6L
Channel
4
VRWM (V)
5
CIN (pF)
1.8
ESD Vclamp
@8kV (V)
8
ESD Air/Contact
(kV)
30/30
Surge Ipp
8/20μS (A)
10
VBR (V)
6
Directional
Uni
Surge Vclamp@5A (V)
7
EFT IO (A)
70
Size (L,mm)
2.92
Size (W,mm)
1.60
Size (H,mm)
1.45
