AZ2025-04S
PDF :
(195.4KB)
Pin Compatible
Applications
- Computer Interfaces Protection
- Microprocessors Protection
- Serial and Parallel Ports Protection
- Control Signal Lines Protection
- Power lines on PCB Protection
- Latchup Protection
Specification
Package

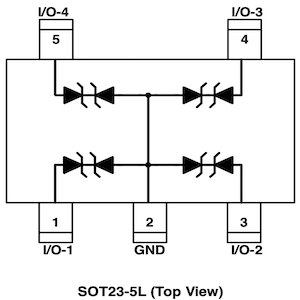

SOT23-5L
Channel
4
VRWM (V)
5
CIN (pF)
12
ESD Vclamp
@8kV (V)
10.5
ESD Air/Contact
(kV)
22/15
Surge Ipp
8/20μS (A)
8.5
VBR (V)
6.1
Directional
Bi
Surge Vclamp@5A (V)
7
EFT IO (A)
40
Size (L,mm)
2.92
Size (W,mm)
1.60
Size (H,mm)
1.20
